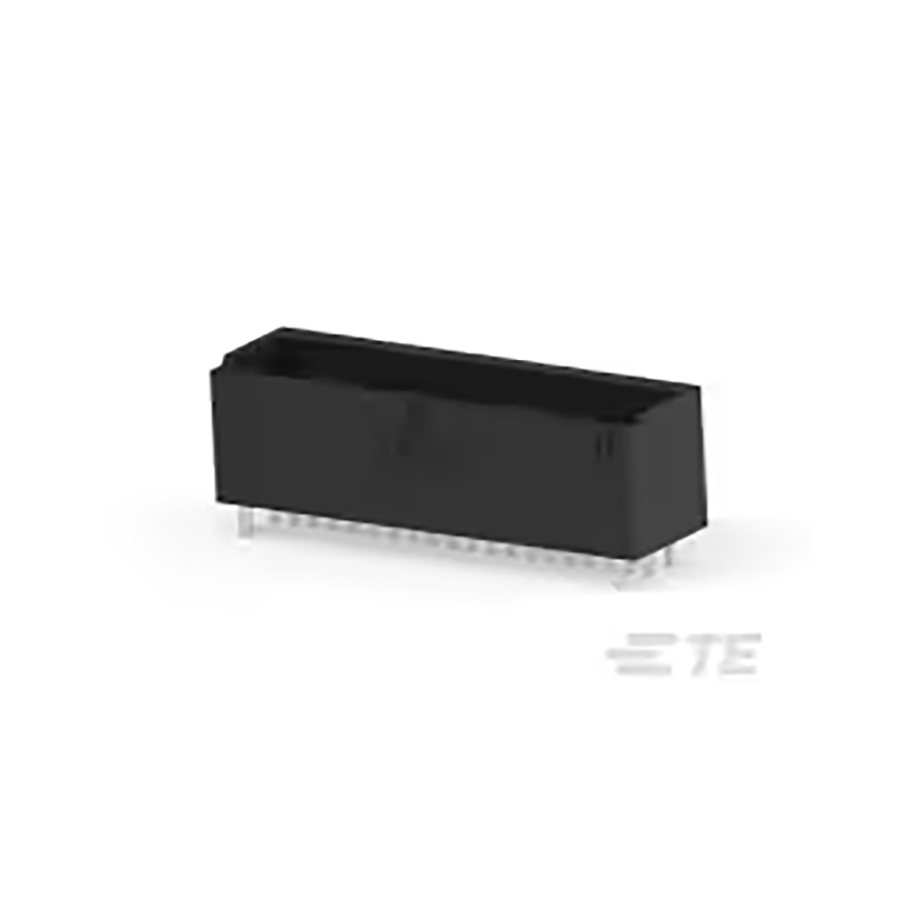

1-1827872-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1827872-0
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Plug, Tab Number of Positions:40 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 15.02 mm |
| Width | 9.3472 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 12.446 mm |
| Packaging | Tube |
| Depth | 11.3 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2 mm |
| Number of Terminals | 40 |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Vertical |
| Operating Supply Voltage | 125 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 40 |
| ELV | Compliant |
| Connector Type | Header, Plug, Tab |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 3.29946 mm |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Connector System | Wire-to-Board |
| Contact Style | Straight |
| Max Voltage Rating (AC) | 125 V |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| PCB Thickness | 1.6002 mm |
| Tail Length | 3.05 mm |
| VDE Tested | No |
| Preloaded | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Mating Retention | Without |
| Mating Alignment | With |
| Termination Post Length | 3.05 mm |
Stock: 1589
Distributors
pcbx
pcbxUnit Price$8.99899
Ext.Price$8.99899
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.99899 | $8.99899 |
| 10 | $7.57606 | $75.76060 |
| 25 | $6.37812 | $159.45300 |
| 50 | $5.36960 | $268.48000 |
| 100 | $4.52055 | $452.05500 |
| 300 | $3.80575 | $1141.72500 |
| 500 | $3.20398 | $1601.99000 |
| 1000 | $2.69730 | $2697.30000 |
